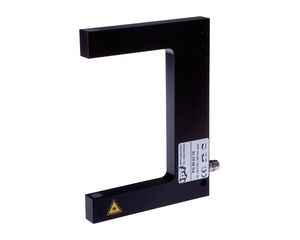

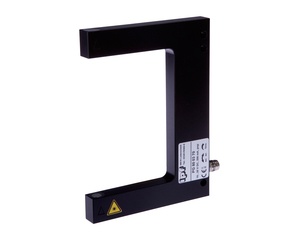

ÇATAL SENSOR AİLESİ

 OG020370 2mm 10kHz 4 infrared light, constant light

OG0321X0 3mm 50kHz 4 infrared light,

OG050171 5mm 1kHz 5 infrared light, pulsed OG100371 10mm 1kHz 5 infrared light / red light, pulsed

OG200371 / 72 20mm 4kHz 6 infrared light / red light, pulsed

OG300371 / 72 30mm 4kHz 6 infrared light / red light, pulsed

OG400371 / 72 40mm 4kHz 6 infrared light / red light, pulsed

OG500371 / 72 50mm 4kHz 7 infrared light / red light, pulsed

OG600371 / 72 60mm 4kHz 7 infrared light / red light, pulsed

OG700371 / 72 70mm 4kHz 7 infrared light / red light, pulsed

OG800371 / 72 80mm 4kHz 8 infrared light / red light, pulsed

OG900371 / 72 90mm 4kHz 8 infrared light / red light, pulsed

OGK00371 / 72 100mm 4kHz 8 infrared light / red light, pulsed

OGKB0371 / 72 120mm 2kHz 9 infrared light, pulsed

OGKE0371 150mm 2kHz 9 infrared light / red light, pulsed

OGKG0371 / 72 170mm 2kHz 10 infrared light / red light, pulsed

OGLB0371 / 72 220mm 2kHz 10 infrared light, pulsed

OGLE0371 250mm 2kHz 11 notes 12 forked light barriers, teach-in 13 infrared light, pulsed, teach-button

OG020373 2mm 3kHz 14 infrared light, pulsed, teach-button

OG050373 5mm 3kHz 14 red light, pulsed, teach-button

OG300374 30mm 3kHz 14 red light, pulsed, teach-button

OG500374 50mm 3kHz 15 red light, pulsed, teach-button

OG800374 80mm 3kHz 15 notes 16 forked light barriers, high power 17 infrared light, pulsed OG200376 20mm 300Hz 18 infrared light, pulsed OG300376 30mm 300Hz 18 infrared light, pulsed

OG500376 50mm 300Hz 19 infrared light, pulsed

OG800376 80mm 300Hz 19 notes 20 forked light barriers, analog 21 infrared light, pulsed OG500021 50mm 2kHz 22 forked light barriers, differential evaluation 23 infrared light, constant light

OG300375 30mm 5kHz 24 infrared light, constant light

OG500375 50mm 5kHz 24 infrared light, constant light

OG900375 90mm 5kHz 25 notes 26 forked light barriers, laser 27 laser - red light, pulsed PG300370 30mm 3kHz 28 laser - red light, pulsed

PG300375 30mm 3kHz 28 laser - red light, pulsed

PG500370 50mm 3kHz 29 laser - red light, pulsed

PG500375 50mm 3kHz 29 laser - red light, pulsed

PG800370 80mm 3kHz 30 laser - red light, pulsed

PG800375 80mm 3kHz 30 laser - red light, pulsed

PGKB0370 120mm 3kHz 31 laser - red light, pulsed PGKB0375 120mm 3kHz 31

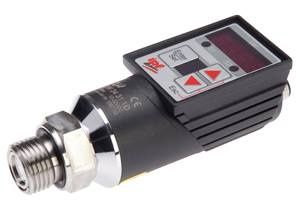

BASINÇ SENSOR AILESİNDEN BAZI KODLAR

DW34311D 34-G1/2A 10bar, Edelstahl Polyester/V4A 12-32V DC pnp,no/nc,0/4-20mA 2x1A M12-Stckr4pol 1

DW34311F 34-G1/2A 50bar, Edelstahl Polyester/V4A 12-32V DC pnp,no/nc,0/4-20mA 2x1A M12-Stckr4pol 1 DW343114 34-G1/2A 100bar, Edelstahl Polyester/V4A 12-32V DC pnp,no/nc,0/4-20mA 2x1A M12-Stckr4pol 1

DW34311G 34-G1/2A 200bar, Edelstahl Polyester/V4A 12-32V DC pnp,no/nc,0/4-20mA 2x1A M12-Stckr4pol 1

DW343116 34-G1/2A 400bar, Edelstahl Polyester/V4A 12-32V DC pnp,no/nc,0/4-20mA 2x1A M12-Stckr4pol 1 DW343117 34-G1/2A 600bar, Edelstahl Polyester/V4A 12-32V DC pnp,no/nc,0/4-20mA 2x1A M12-Stckr4pol 1

DW34311K 34-G1/2A -1 … +10bar, Edelstahl Polyester/V4A 12-32V DC pnp,no/nc,0/4-20mA 2x1A M12-Stck

OR40176 and IO050176:
all-metal sensors in a small size

It is difficult to imagine automation technology without inductive proximity sensors. The technology used in this type of sensor has existed for nearly 60 years – and development continues.

Inductive sensors with metallic sensor surface are among the mostly demanded device solutions, as they are, in comparison to versions with an active surface made of plastic, much more robust and absolutely sealed. In the past, the smallest design had a diameter of 6.5mm. The latest devices size M5x0.5 respectively 4mm round, round off the production range now. These non-flush versions feature, like its big "role models", a one-piece stainless steel housing. For a norm measuring plate or an object of 9x9x1mm, the nominal switching distance of these extremely robust all-metal sensors is 3mm. Due to the transformational measurement principle, the reduction factors on nonferrous metals are low. The maximum switching frequency is 1200Hz.

Information on the operating principle: A flashing of the switching state LED indicates that the object to be detected is at the limit of 80-100% of the detection range. When it approaches further to the sensor, the LED illuminates continuously. In this way, the operator can quickly determine if the sensor operates reliably in practical use. The electrical connection is made via a standard 3-pin M8 cable connector.
