Key features of TBI series:

Compact, robust design for mechanical engineering, instrumention and outdoor application;
1 to 2048 pulses per revolution (11 bits);
Aluminum or stainless steel housing;
Two – chamber construction to separate rotating components from electronic circuits;
Protection grades: IP 66 or IP 69K (optional);
Operating temperature range: -40° C to +85° C;
3 sizes: 36 mm, 42 mm and 50 mm;

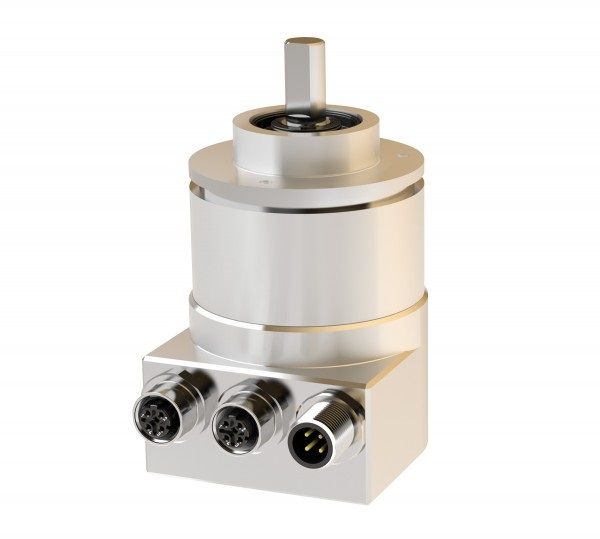

Key features of TRK / S3 SIL2:

7 housing sizes : 58 mm, 64 mm, 65 mm, 66 mm, 90 mm, 105 mm, 125 mm;
Resolution: up to 8,192 pulses per revolution;
Measuring range: 4096 revolutions;
Contactless, wear-free sensor system according to the Hall principle;
High vibration and shock resistance thanks to the robust mechanical design;
Safe position and safe speed signal;
SIL2 (Safety Integrity Level) certificate;
Protection grade: up to IP 69K;
Option: Draw wire version with integrated encoder: TRK125-D;
Programmable via EtherCAT;

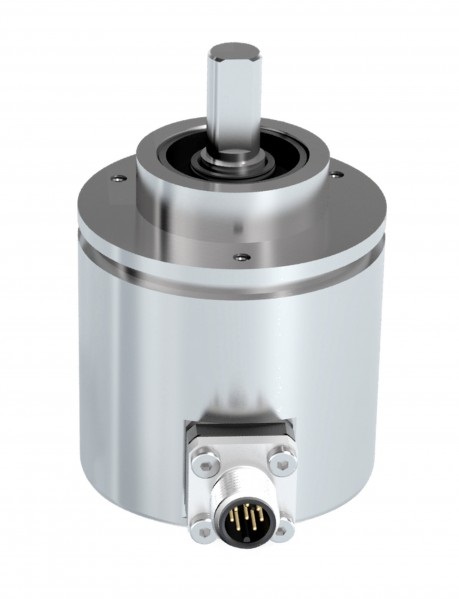

Key features of TRK series:

6 housing sizes: 58 mm, 64 mm, 65 mm, 66 mm, 105 mm, 125 mm;
Contactless, wear-free sensor system according to the Hall principle;
Dual-chamber system for separating the rotor and electronics;
Resolution 4096 pulses per revolution – 12 bits (optional 13 bits);
Measuring range: 4096 revolutions;
Protection grade: up to IP 69K;
Option: Draw wire version with integrated encoder: TRK125-D;

Key features of TRN / S4 SIL2 series:

3 housing sizes: 42 mm, 50 mm, 58 mm;
Sturdy design for tough applications, e.g. crane technology, construction machinery and mobile working equipment;
Resolution 16384 pulses per revolution;
Measuring range up to 67 108 864 pulses;
Protection grade: IP 65 / IP 66 (optional IP 69K);
SIL2 (Safety Integrity Level) certificate;

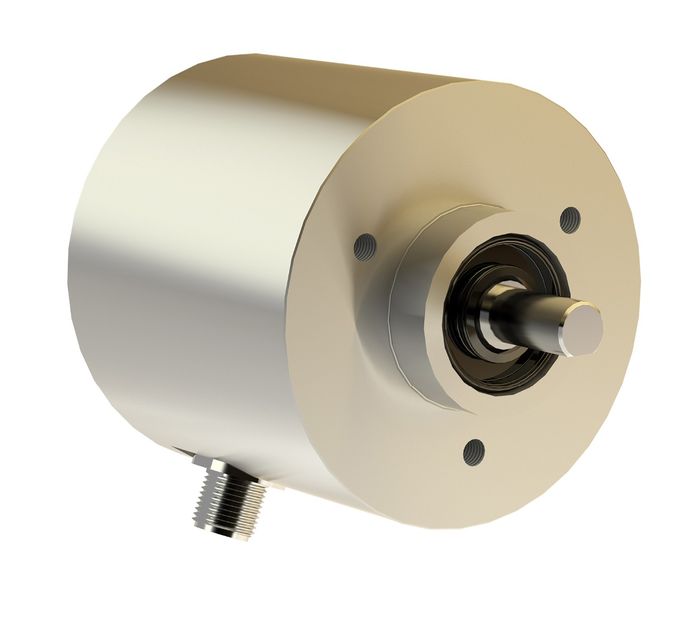

Key features of TRN series:

4 housing sizes: 42 mm, 50 mm, 58 mm, 79 mm (redundant encoder);
Sturdy design for tough applications, e.g. crane technology, construction machinery and mobile working equipment;
Resolution up to 16384 pulses per revolution – 14 bits;
Measuring range – up to 67 108 864 pulses;
Protection grade: up to IP65 / 66 (optional IP 69K);
In the TRN79 / R2 model redundant – measuring strokes for both redundant measuring parts are independent – can be configured by the user;

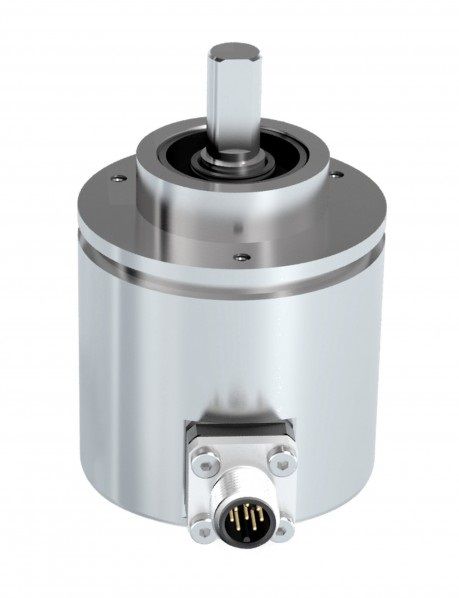

Key features of TRD series:

7 housing sizes: 58 mm, 64 mm, 65 mm, 66 mm, 90 mm, 105 mm, 125 mm;
Contactless, wear-free sensor system according to the Hall principle;
High vibration and shock resistance thanks to the robust mechanical design;
Resolution: up to 8,192 pulses per revolution – 13 bits;
Protection grade: IP 66 or IP 69K (optional);
Option: Draw wire version with integrated encoder: TRD125-D;

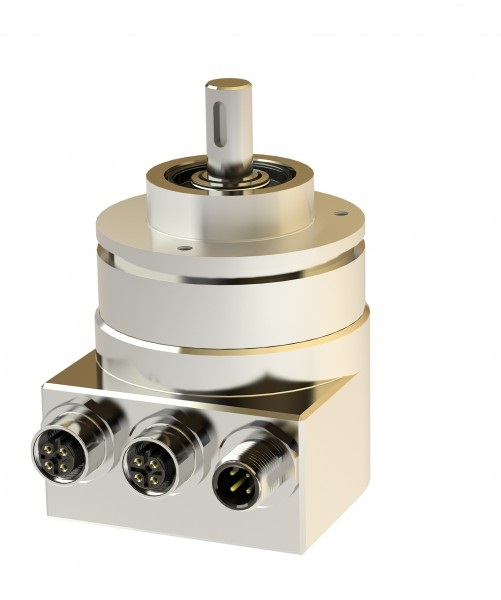

Key features of TRT / S3 SIL2 series:

6 sizes enclosures: 58 mm, 64 mm, 65 mm, 66 mm, 105 mm, 125 mm;
Resolution: up to 8,192 pulses per revolution;
Safe position and safe speed signal;
High vibration and shock resistance thanks to the robust mechanical design;
SIL2 (Safety Integrity Level) certificate;
Protection grade: up to IP 69K;
Programmable via PROFINET;

Key features of TRT series:

7 housing sizes: 58 mm, 64 mm, 65 mm, 66 mm, 90 mm, 105 mm, 125 mm;
Contactless, wear-free sensor system according to the Hall principle;
High vibration and shock resistance thanks to the robust mechanical design;
Position and speed signal;
Resolution up to 8192 pulses per revolution – 13 bits;
Optional: draw wire version with integrated encoder: TRT125-D;
