Key features of the FOI series:

Robust mechanical construction, high vibration and shock resistance
1 to 16,384 pulses/ revolution
Operating temperature – 40 °C to + 85 °C
Protection grade IP 65

Key features of the FOI series:

Robust mechanical construction, high vibration and shock resistance
1 to 16,384 pulses/ revolution
Operating temperature – 40 °C to + 85 °C
Protection grade IP 65

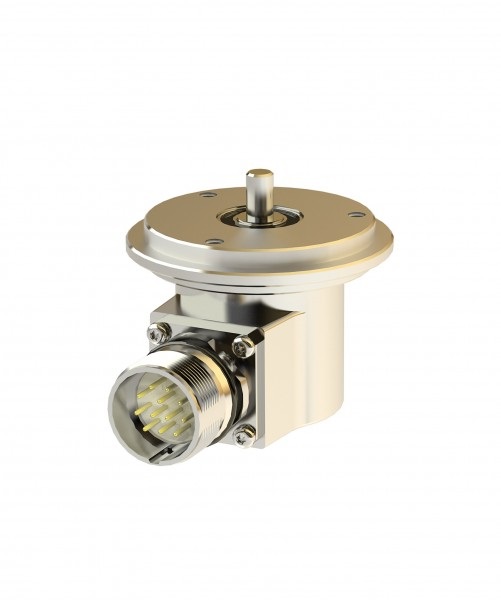

MODEL FOI 58 INCREMENTAL ENCODER

ÇÖZÜMLERİNİZDE KULLANACAGINIZ EN EKONOMIK EN UZUN ÖMÜRLÜ TWK ELEKTRONİK GMBH ÜRETİMİ BİR İNCREMENTAL ENKODER

  Number of pulses/ revolution: Each pulse number from 1 to 16,384 pulses / revolutions

 Signal outputs: Channel A, B and Zero Z and inverted signals 

Form of signals: Square (Duty cycle 1:1)

Ürün bilgisi "Artımlı Kodlayıcı FOI"

FOI modeline sahip artımlı döner kodlayıcı, manyetik sensör ve sinyal işleme ile açısal pozisyonu tespit eder ve karşılık gelen darbe çıkışlarını üretir. Antikorozif kaplamalı ve paslanmaz çelik flanşlı (AIMgSi1) sağlam çelik gövde, bireysel uygulamanız için artan enkoderin çok yönlü kullanımını sağlar. FOI'nin şaftı paslanmaz çelikten imal edilmiştir ve yataklarda bir salmastra bulunur.

Ürün Kategorisi:

kodlayıcılar

Artımlı veya mutlak:

artımlı

Stil:

58mm

Flanş ve şaft:

Sıkma flanşı, şaft 10mm, kör delikli oyuk şaft, sıkma halkası 12mm (10, 8, adaptör manşonlu 6mm), senkro flanş, şaft 6mm

Muhafaza malzemesi:

Alüminyum AIMgSi 1

koruması:

IP65

Elektrik bağlantısı:

M23 fişi, 12 pin

dürtü:

1 ... 16,384

Şaft rotasyon:

CCW, CW

Çıkış sinyali:

A + B +, A + B + A- B-, A + B + Z +, A + B + Z + A- B- Z-

Dalga biçimi:

HTL, TTL

Elektriksel ve / veya mekanik değişken:

standart

Mevcut İndirmeler:

ELEKTRIKSEL BİLGİLER

Key features of TRA series:

2 housing sizes: 42 mm, 50 mm;
Resolution 4096 pulses per revolution;
Measuring range up to 1 474 560;
Compact, robust design for mechanical engineering especially for building machinery, underwater devices and food conditioning equipment;
With absolute multiturn gearbox;
Aluminum or stainless steel housing;
Two-chamber construction to separate rotating components from electronic circuit;
Protection grade: IP 66 or IP 69K (optional);
Operating temperature range: -40° C to + 85° C;

Key features of TRA series:

2 housing sizes: 42 mm, 50 mm;
Resolution 4096 pulses per revolution;
Measuring range up to 1 474 560;
Compact, robust design for mechanical engineering especially for building machinery, underwater devices and food conditioning equipment;
With absolute multiturn gearbox;
Aluminum or stainless steel housing;
Two-chamber construction to separate rotating components from electronic circuit;
Protection grade: IP 66 or IP 69K (optional);
Operating temperature range: -40° C to + 85° C;

Most important features of the absolute multiturn encoders of the TRE series:

3 housing sizes: 42 mm, 50 mm, 58 mm;
Compact, robust design for mechanical engineering especially for building machinery, underwater devices and food conditioning equipment;
With absolute multiturn gearbox;
Resolution 4096 pulses per revolution;
Measuring range: up to 67 108 864 pulses;
Aluminum or stainless steel housing;
Two – chamber construction to separate rotating components from electronic circuit;
Protection grade: IP 66 or IP 69K (optional);
Operating temperature range: -40° C to +85° C;

Most important features of the absolute multiturn encoders of the TRE series:

3 housing sizes: 42 mm, 50 mm, 58 mm;
Compact, robust design for mechanical engineering especially for building machinery, underwater devices and food conditioning equipment;
With absolute multiturn gearbox;
Resolution 4096 pulses per revolution;
Measuring range: up to 67 108 864 pulses;
Aluminum or stainless steel housing;
Two – chamber construction to separate rotating components from electronic circuit;
Protection grade: IP 66 or IP 69K (optional);
Operating temperature range: -40° C to +85° C;

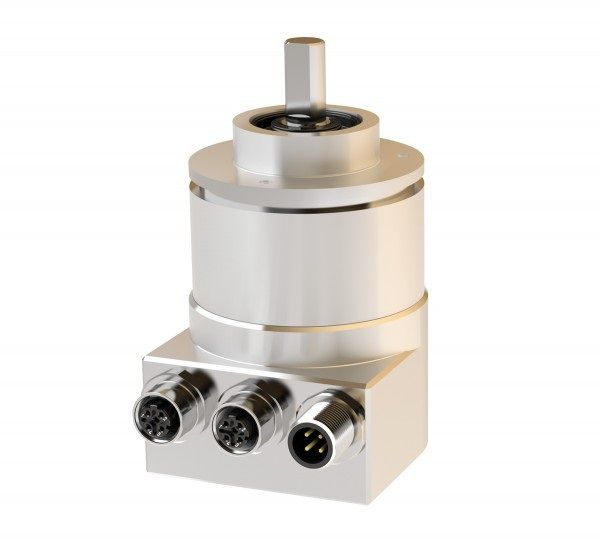

Key features of TRK / S3 SIL2 series:

7 housing sizes : 58 mm, 64 mm, 65 mm, 66 mm, 90 mm, 105 mm, 125 mm;
Resolution: up to 8,192 pulses per revolution;
Contactless, wear-free sensor system according to the Hall principle;
High vibration and shock resistance thanks to the robust mechanical design;
Safe position and safe speed signal;
SIL2 (Safety Integrity Level) certificate;
Protection class: up to IP 69K;
Option: Draw wire version with integrated encoder: TRK125-D;
Programmable via EtherCAT;

Key features of TRK / S3 SIL2 series:

7 housing sizes : 58 mm, 64 mm, 65 mm, 66 mm, 90 mm, 105 mm, 125 mm;
Resolution: up to 8,192 pulses per revolution;
Contactless, wear-free sensor system according to the Hall principle;
High vibration and shock resistance thanks to the robust mechanical design;
Safe position and safe speed signal;
SIL2 (Safety Integrity Level) certificate;
Protection class: up to IP 69K;
Option: Draw wire version with integrated encoder: TRK125-D;
Programmable via EtherCAT;

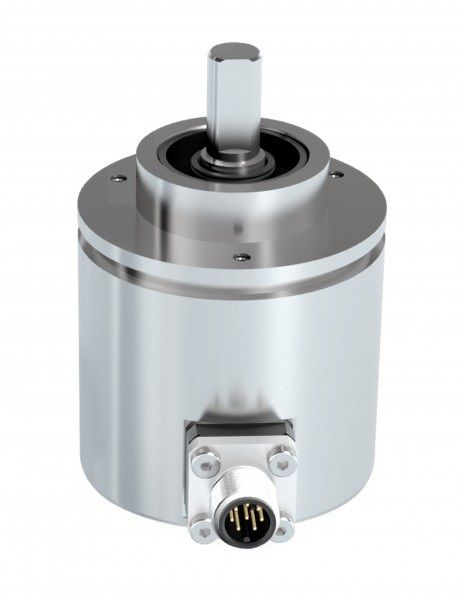

Key features of TRK series:

6 sizes: 58 mm, 64 mm, 65 mm, 66 mm, 105 mm, 125 mm;
Contactless, wear-free sensor system according to the Hall principle;
High vibration and shock resistance thanks to the robust mechanical design;
Resolution: 4096 steps / 360° <) – 12 bit (13 bit optional);
Dual-chamber system for separating the rotor and electronics;
Protection grade: up to IP 69K;
Option: Draw wire version with integrated encoder: TRK125-D;

Key features of TRK series:

6 sizes: 58 mm, 64 mm, 65 mm, 66 mm, 105 mm, 125 mm;
Contactless, wear-free sensor system according to the Hall principle;
High vibration and shock resistance thanks to the robust mechanical design;
Resolution: 4096 steps / 360° <) – 12 bit (13 bit optional);
Dual-chamber system for separating the rotor and electronics;
Protection grade: up to IP 69K;
Option: Draw wire version with integrated encoder: TRK125-D;

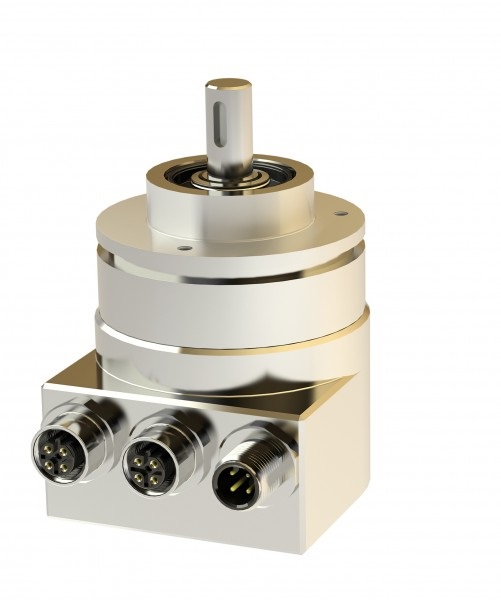

Key features of TBN / S4 SIL2 series:

Sturdy design for tough applications, e.g. crane technology, construction machinery and mobile working equipment;
Resolution 16384 pulses per revolution;
Protection grade IP 65 / IP 66 (optional IP 69K);
SIL2 (Safety Integrity Level) certificate;

Key features of TBN / S4 SIL2 series:

Sturdy design for tough applications, e.g. crane technology, construction machinery and mobile working equipment;
Resolution 16384 pulses per revolution;
Protection grade IP 65 / IP 66 (optional IP 69K);
SIL2 (Safety Integrity Level) certificate;

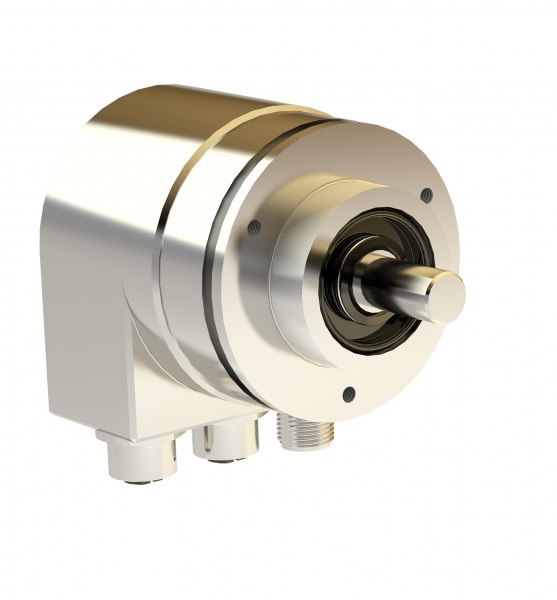

Key features of TBD series:

7 sizes: 58 mm, 64 mm, 65 mm, 66 mm, 90 mm, 105 mm, 125 mm;
Contactless, wear-free sensor system according to the Hall principle;
High vibration and shock resistance thanks to the robust mechanical design;
Resolution up to 8192 steps / 360° (13 bit)
Protection type: IP 66 or IP 69K (optional);
Option: Draw wire version with integrated encoder: TRD125-D

Key features of TBD series:

7 sizes: 58 mm, 64 mm, 65 mm, 66 mm, 90 mm, 105 mm, 125 mm;
Contactless, wear-free sensor system according to the Hall principle;
High vibration and shock resistance thanks to the robust mechanical design;
Resolution up to 8192 steps / 360° (13 bit)
Protection type: IP 66 or IP 69K (optional);
Option: Draw wire version with integrated encoder: TRD125-D

Key features of TRT / S3 SIL2 series:

6 sizes: 58 mm, 64 mm, 65 mm, 66 mm, 105 mm, 125 mm;
Resolution up to 8192 pulses per revolution;
Safe position and safe speed signal;
High vibration and shock resistance thanks to the robust mechanical design;
SIL2 (Safety Integrity Level) certificate;
Protection type up to IP 69K;
Programmable via PROFINET;

Key features of TRT / S3 SIL2 series:

6 sizes: 58 mm, 64 mm, 65 mm, 66 mm, 105 mm, 125 mm;
Resolution up to 8192 pulses per revolution;
Safe position and safe speed signal;
High vibration and shock resistance thanks to the robust mechanical design;
SIL2 (Safety Integrity Level) certificate;
Protection type up to IP 69K;
Programmable via PROFINET;

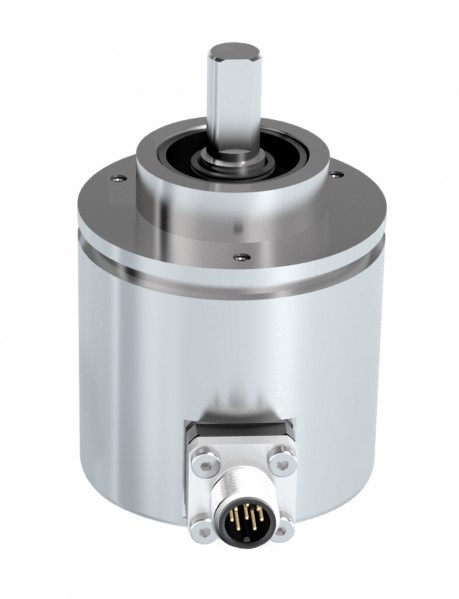

Key features of TRT series:

7 sizes: 58 mm, 64 mm, 65 mm, 66 mm, 90 mm, 105 mm, 125 mm;
Contactless, wear-free sensor system according to the Hall principle;
High vibration and shock resistance thanks to the robust mechanical design;
Position and speed signal;
Resolution up to 8192 pulses per revolution – 13 bits;
Optional: draw wire version with integrated encoder: TRT125-D;

Key features of TRT series:

7 sizes: 58 mm, 64 mm, 65 mm, 66 mm, 90 mm, 105 mm, 125 mm;
Contactless, wear-free sensor system according to the Hall principle;
High vibration and shock resistance thanks to the robust mechanical design;
Position and speed signal;
Resolution up to 8192 pulses per revolution – 13 bits;
Optional: draw wire version with integrated encoder: TRT125-D;

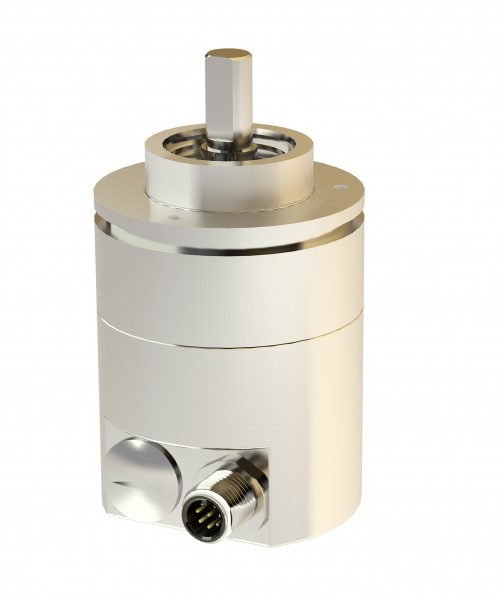

Key features of TBA series:

5 sizes: 36 mm, 37 mm, 42 mm, 50 mm, 58 mm;
Resolution 4096 pulses per revolution – 12 bits (optional 13 bits);
Compact and robust design for machines and systems, especially for construction machines, underwater devices and food processing machines;
High vibration and shock resistance thanks to robust mechanical design and additional casting within the housing;
Aluminum or stainless steel housing;
Dual-chamber system for separating the rotor and electronics;
Protection grade up to IP 69K;
In the TBA58 / R2 model redundant – measuring strokes for both redundant measuring parts are independent – can be configured by the user;
Operating temperature range: -40° C to +85° C;

Key features of TBA series:

5 sizes: 36 mm, 37 mm, 42 mm, 50 mm, 58 mm;
Resolution 4096 pulses per revolution – 12 bits (optional 13 bits);
Compact and robust design for machines and systems, especially for construction machines, underwater devices and food processing machines;
High vibration and shock resistance thanks to robust mechanical design and additional casting within the housing;
Aluminum or stainless steel housing;
Dual-chamber system for separating the rotor and electronics;
Protection grade up to IP 69K;
In the TBA58 / R2 model redundant – measuring strokes for both redundant measuring parts are independent – can be configured by the user;
Operating temperature range: -40° C to +85° C;

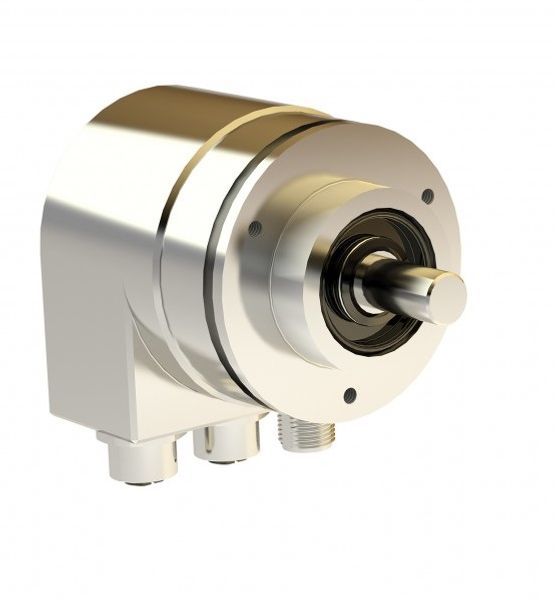

Key features of HBE series:

2 sizes: 58 mm, 65 mm;
Robust design for rough applications with high resolution requirement such as crane technology, construction machines and special engineering;
High vibration and shock resistance thanks to the compact mechanical design;
Resolution < 22 bit/360°;
Protection type IP 66

Key features of HBE series:

2 sizes: 58 mm, 65 mm;
Robust design for rough applications with high resolution requirement such as crane technology, construction machines and special engineering;
High vibration and shock resistance thanks to the compact mechanical design;
Resolution < 22 bit/360°;
Protection type IP 66

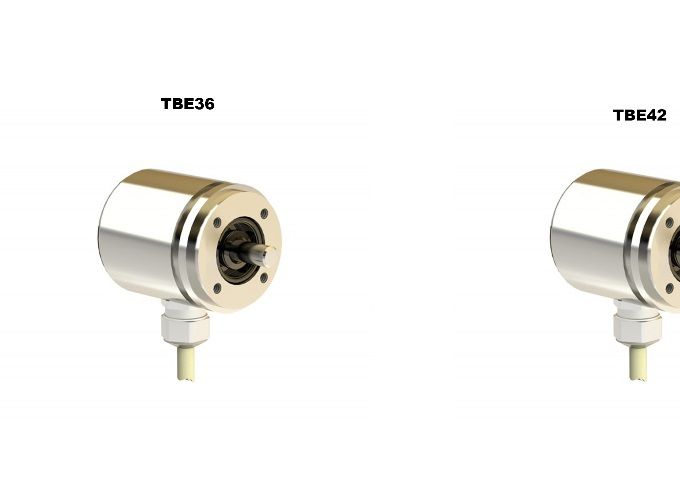

Key features of TBE series:

4 sizes: 36 mm, 42 mm, 50 mm, 58 mm;
Resolution up to 16,384 pulses per revolution (12-bit, 13-bit and 14-bit options);
Compact and robust design for machines and systems, especially for construction machines, underwater devices and food processing machines
High vibration and shock resistance thanks to robust mechanical design and additional casting within the housing;
Aluminum or stainless steel housing;
Dual-chamber system for separating the rotor and electronics;
Protection grades: IP 66 or IP 69K (optional);
Operating temperature range: -40° C to + 85° C;

Key features of TBE series:

4 sizes: 36 mm, 42 mm, 50 mm, 58 mm;
Resolution up to 16,384 pulses per revolution (12-bit, 13-bit and 14-bit options);
Compact and robust design for machines and systems, especially for construction machines, underwater devices and food processing machines
High vibration and shock resistance thanks to robust mechanical design and additional casting within the housing;
Aluminum or stainless steel housing;
Dual-chamber system for separating the rotor and electronics;
Protection grades: IP 66 or IP 69K (optional);
Operating temperature range: -40° C to + 85° C;
