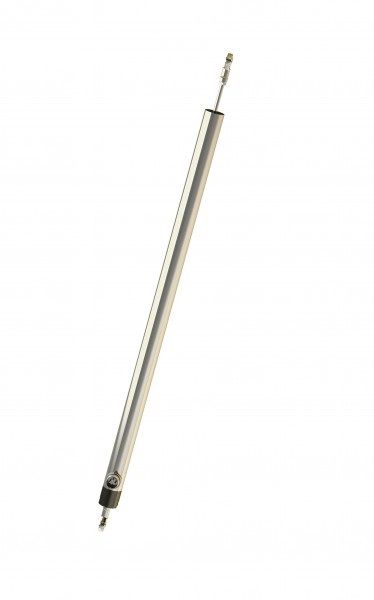

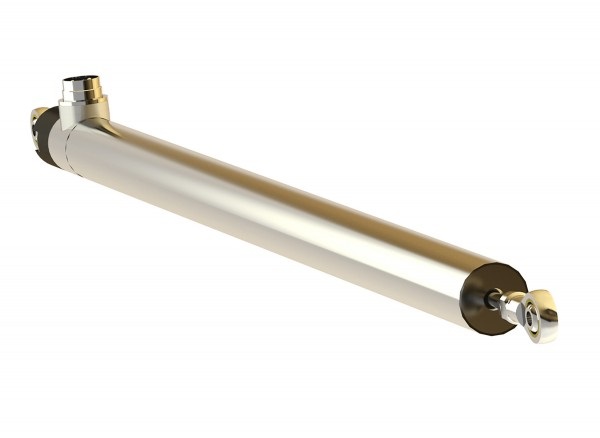

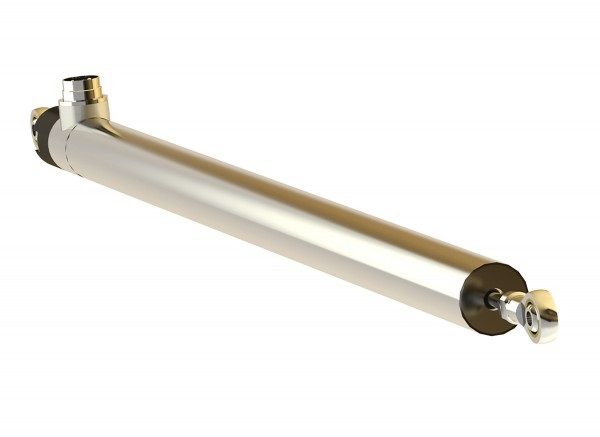

Key features of RH33 series:

Measuring strokes: 100 mm, 150 mm, 200 mm, 250 mm, 300 mm, 400 mm, 500 mm, 600 mm, 700 mm, 800 mm, 900 mm, 1000 mm;
Conductive plastic potentiometers
Robust mechanical layout for industrial applications
Linearity ± 0,05%
Life expectancy up to 100 million cycles
Infinite resolution
With axial connector M12, radial or axial cable exits at option

Key features of RH33 series:

Measuring strokes: 100 mm, 150 mm, 200 mm, 250 mm, 300 mm, 400 mm, 500 mm, 600 mm, 700 mm, 800 mm, 900 mm, 1000 mm;
Conductive plastic potentiometers
Robust mechanical layout for industrial applications
Linearity ± 0,05%
Life expectancy up to 100 million cycles
Infinite resolution
With axial connector M12, radial or axial cable exits at option

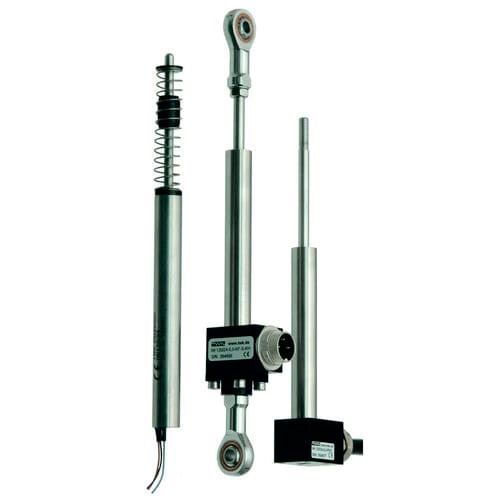

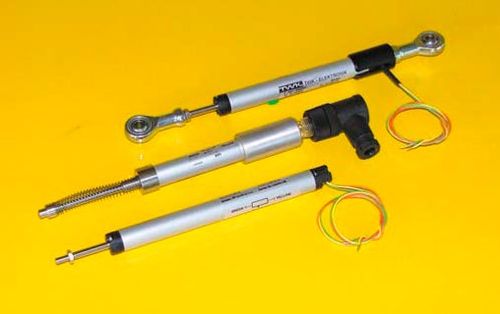

Key features of RP13 series:

Measuring strokes: 25 mm, 50 mm, 75 mm, 100 mm, 125 mm, 150 mm, 200 mm, 250 mm, 300 mm;
Conductive plastic potentiometers
Linearity ± 0.1 % to ± 0.05 %
Life expectancy up to 100 million cycles
Infinite resolution
Protection grade IP65
Ball joints at option
Spring return at option

Key features of RP13 series:

Measuring strokes: 25 mm, 50 mm, 75 mm, 100 mm, 125 mm, 150 mm, 200 mm, 250 mm, 300 mm;
Conductive plastic potentiometers
Linearity ± 0.1 % to ± 0.05 %
Life expectancy up to 100 million cycles
Infinite resolution
Protection grade IP65
Ball joints at option
Spring return at option

Key features of IW120 series:

Measuring strokes: 12 mm, 24 mm, 40 mm, 60 mm, 100 mm, 150 mm, 200 mm;
Contactless, robust system
Infinite resolution
No hysteresis
Linearity 0.5 % or 0.25 %
Protection type IP 66 (with cable IP 68)
Supply and signal processing through external modules
Housing material: Stainless steel (1.4305)
Plunger Material: nickel-iron (stainless)

Key features of IW120 series:

Measuring strokes: 12 mm, 24 mm, 40 mm, 60 mm, 100 mm, 150 mm, 200 mm;
Contactless, robust system
Infinite resolution
No hysteresis
Linearity 0.5 % or 0.25 %
Protection type IP 66 (with cable IP 68)
Supply and signal processing through external modules
Housing material: Stainless steel (1.4305)
Plunger Material: nickel-iron (stainless)

Key features of IW101 series:

Measuring strokes: 4 mm, 5 mm, 8 mm, 10 mm, 15 mm;
Contactless, robust sensor system
Infinite resolution, no hysteresis
Exitation and signal processing by external electronic modules
Various mechanical configurations
Protection to IP 66

Key features of IW101 series:

Measuring strokes: 4 mm, 5 mm, 8 mm, 10 mm, 15 mm;
Contactless, robust sensor system
Infinite resolution, no hysteresis
Exitation and signal processing by external electronic modules
Various mechanical configurations
Protection to IP 66

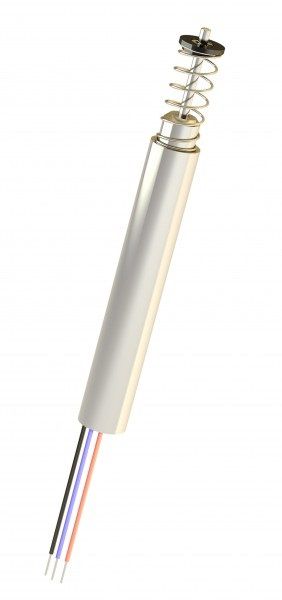

Key features of IW10 series:

Measuring strokes: 4 mm, 5 mm, 8 mm;
Contactless, robust sensor system
Infinite resolution, no hysteresis
Exitation and signal processing by external electronic modules
Various mechanical configurations
Protection to IP 66

Key features of IW10 series:

Measuring strokes: 4 mm, 5 mm, 8 mm;
Contactless, robust sensor system
Infinite resolution, no hysteresis
Exitation and signal processing by external electronic modules
Various mechanical configurations
Protection to IP 66

IW10-IW101

Key features of IWN250 series of inductive transducers:

Measuring strokes: 20 mm, 40 mm, 100 mm, 200 mm;
Contactless, robust sensor system
Integral electronics
Resolution 12 bit / binary
Definite repeatability
CANopen digital interface;
Gauge type with spring return up to 100 mm measuring stroke
Protection class IP 66;

Key features of IWN250 series of inductive transducers:

Measuring strokes: 20 mm, 40 mm, 100 mm, 200 mm;
Contactless, robust sensor system
Integral electronics
Resolution 12 bit / binary
Definite repeatability
CANopen digital interface;
Gauge type with spring return up to 100 mm measuring stroke
Protection class IP 66;

IWE260 series:

Measuring strokes: 80 mm, 170 mm, 240 mm, 360 mm;
Contactless, robust sensor system
Infinite resolution, no hysteresis
Digital interface SSI
Resolution 12 Bits / natural binary
Gauge with spring return up to 100 mm
Protection class IP 66

IWE260 series:

Measuring strokes: 80 mm, 170 mm, 240 mm, 360 mm;
Contactless, robust sensor system
Infinite resolution, no hysteresis
Digital interface SSI
Resolution 12 Bits / natural binary
Gauge with spring return up to 100 mm
Protection class IP 66

Key features of IWE250 series of inductive linear transducers:

Measuring strokes: 20 mm, 40 mm, 100 mm, 200 mm;
Contactless, robust sensor system
Infinite resolution, no hysteresis
Digital interface SSI
Resolution 12 Bits / natural binary
Gauge with spring return up to 100 mm
Protection class IP 66

Key features of IWE250 series of inductive linear transducers:

Measuring strokes: 20 mm, 40 mm, 100 mm, 200 mm;
Contactless, robust sensor system
Infinite resolution, no hysteresis
Digital interface SSI
Resolution 12 Bits / natural binary
Gauge with spring return up to 100 mm
Protection class IP 66

Key features of the IW260 series of inductive linear transducers:

Measuring strokes: 80 mm, 170 mm, 240 mm, 360 mm;
Contactless, robust sensor system
Infinite resolution, no hysteresis
Calibrated output signals: 0…20 mA, 4…20 mA, ± 10 V, 0…10 V
Integral electronics for DC in / DC out
Accuracy up to 0.1 %
Definite repeatability
Protection class IP 66

Key features of the IW260 series of inductive linear transducers:

Measuring strokes: 80 mm, 170 mm, 240 mm, 360 mm;
Contactless, robust sensor system
Infinite resolution, no hysteresis
Calibrated output signals: 0…20 mA, 4…20 mA, ± 10 V, 0…10 V
Integral electronics for DC in / DC out
Accuracy up to 0.1 %
Definite repeatability
Protection class IP 66

Key features of IW250 series of inductive linear transducers:

Measuring strokes: 20 mm, 40 mm, 100 mm, 200 mm;
Contactless, robust sensor system
Infinite resolution, no hysteresis
Calibrated output signals: 0…20 mA, 4…20 mA, ± 10 V, 0…10 V
Integral electronics for DC in / DC out
Accuracy up to 0.1%
Gauge type up to 100 mm
Protection class up to IP 68

Key features of IW250 series of inductive linear transducers:

Measuring strokes: 20 mm, 40 mm, 100 mm, 200 mm;
Contactless, robust sensor system
Infinite resolution, no hysteresis
Calibrated output signals: 0…20 mA, 4…20 mA, ± 10 V, 0…10 V
Integral electronics for DC in / DC out
Accuracy up to 0.1%
Gauge type up to 100 mm
Protection class up to IP 68

Key features of IW120 series:

Measuring strokes: 12 mm, 24 mm, 40 mm, 60 mm, 100 mm, 150 mm, 200 mm;
Contactless, robust system
Infinite resolution
No hysteresis
Linearity 0.5 % or 0.25 %
Protection type IP 66 (with cable IP 68)
Supply and signal processing through external modules
Housing material: Stainless steel (1.4305)
Plunger Material: nickel-iron (stainless)

Key features of IW120 series:

Measuring strokes: 12 mm, 24 mm, 40 mm, 60 mm, 100 mm, 150 mm, 200 mm;
Contactless, robust system
Infinite resolution
No hysteresis
Linearity 0.5 % or 0.25 %
Protection type IP 66 (with cable IP 68)
Supply and signal processing through external modules
Housing material: Stainless steel (1.4305)
Plunger Material: nickel-iron (stainless)

Key features of IW101 series:

Measuring strokes: 4 mm, 5 mm, 8 mm, 10 mm, 15 mm;
Contactless, robust sensor system
Infinite resolution, no hysteresis
Exitation and signal processing by external electronic modules
Various mechanical configurations
Protection to IP 66

Key features of IW101 series:

Measuring strokes: 4 mm, 5 mm, 8 mm, 10 mm, 15 mm;
Contactless, robust sensor system
Infinite resolution, no hysteresis
Exitation and signal processing by external electronic modules
Various mechanical configurations
Protection to IP 66

Iw10-Iw101

Key features of IW10 series:

Measuring strokes: 4 mm, 5 mm, 8 mm;
Contactless, robust sensor system
Infinite resolution, no hysteresis
Exitation and signal processing by external electronic modules
Various mechanical configurations
Protection to IP 66

Key features of IW10 series:

Measuring strokes: 4 mm, 5 mm, 8 mm;
Contactless, robust sensor system
Infinite resolution, no hysteresis
Exitation and signal processing by external electronic modules
Various mechanical configurations
Protection to IP 66

Key features of IWN250 series of inductive transducers:

Measuring strokes: 20 mm, 40 mm, 100 mm, 200 mm;
Contactless, robust sensor system
Integral electronics
Resolution 12 bit / binary
Definite repeatability
CANopen digital interface;
Gauge type with spring return up to 100 mm measuring stroke
Protection class IP 66;

Key features of IWN250 series of inductive transducers:

Measuring strokes: 20 mm, 40 mm, 100 mm, 200 mm;
Contactless, robust sensor system
Integral electronics
Resolution 12 bit / binary
Definite repeatability
CANopen digital interface;
Gauge type with spring return up to 100 mm measuring stroke
Protection class IP 66;

IWE260 series:

Measuring strokes: 80 mm, 170 mm, 240 mm, 360 mm;
Contactless, robust sensor system
Infinite resolution, no hysteresis
Digital interface SSI
Resolution 12 Bits / natural binary
Gauge with spring return up to 100 mm
Protection class IP 66

IWE260 series:

Measuring strokes: 80 mm, 170 mm, 240 mm, 360 mm;
Contactless, robust sensor system
Infinite resolution, no hysteresis
Digital interface SSI
Resolution 12 Bits / natural binary
Gauge with spring return up to 100 mm
Protection class IP 66

Key features of IWE250 series of inductive linear transducers:

Measuring strokes: 20 mm, 40 mm, 100 mm, 200 mm;
Contactless, robust sensor system
Infinite resolution, no hysteresis
Digital interface SSI
Resolution 12 Bits / natural binary
Gauge with spring return up to 100 mm
Protection class IP 66

Key features of IWE250 series of inductive linear transducers:

Measuring strokes: 20 mm, 40 mm, 100 mm, 200 mm;
Contactless, robust sensor system
Infinite resolution, no hysteresis
Digital interface SSI
Resolution 12 Bits / natural binary
Gauge with spring return up to 100 mm
Protection class IP 66

Key features of the IW260 series of inductive linear transducers:

Measuring strokes: 80 mm, 170 mm, 240 mm, 360 mm;
Contactless, robust sensor system
Infinite resolution, no hysteresis
Calibrated output signals: 0…20 mA, 4…20 mA, ± 10 V, 0…10 V
Integral electronics for DC in / DC out
Accuracy up to 0.1 %
Definite repeatability
Protection class IP 66

Key features of the IW260 series of inductive linear transducers:

Measuring strokes: 80 mm, 170 mm, 240 mm, 360 mm;
Contactless, robust sensor system
Infinite resolution, no hysteresis
Calibrated output signals: 0…20 mA, 4…20 mA, ± 10 V, 0…10 V
Integral electronics for DC in / DC out
Accuracy up to 0.1 %
Definite repeatability
Protection class IP 66
